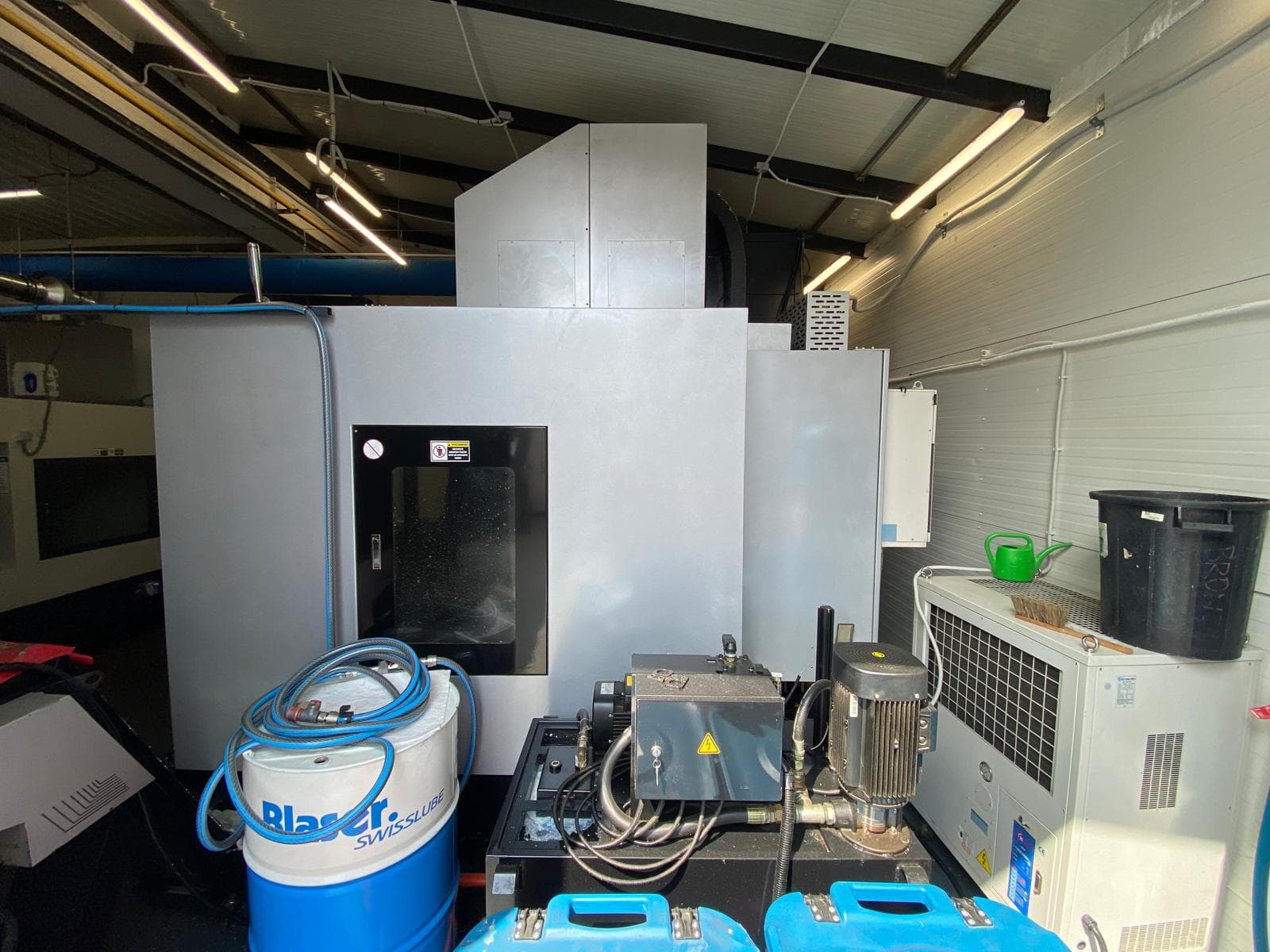

Pinnacle

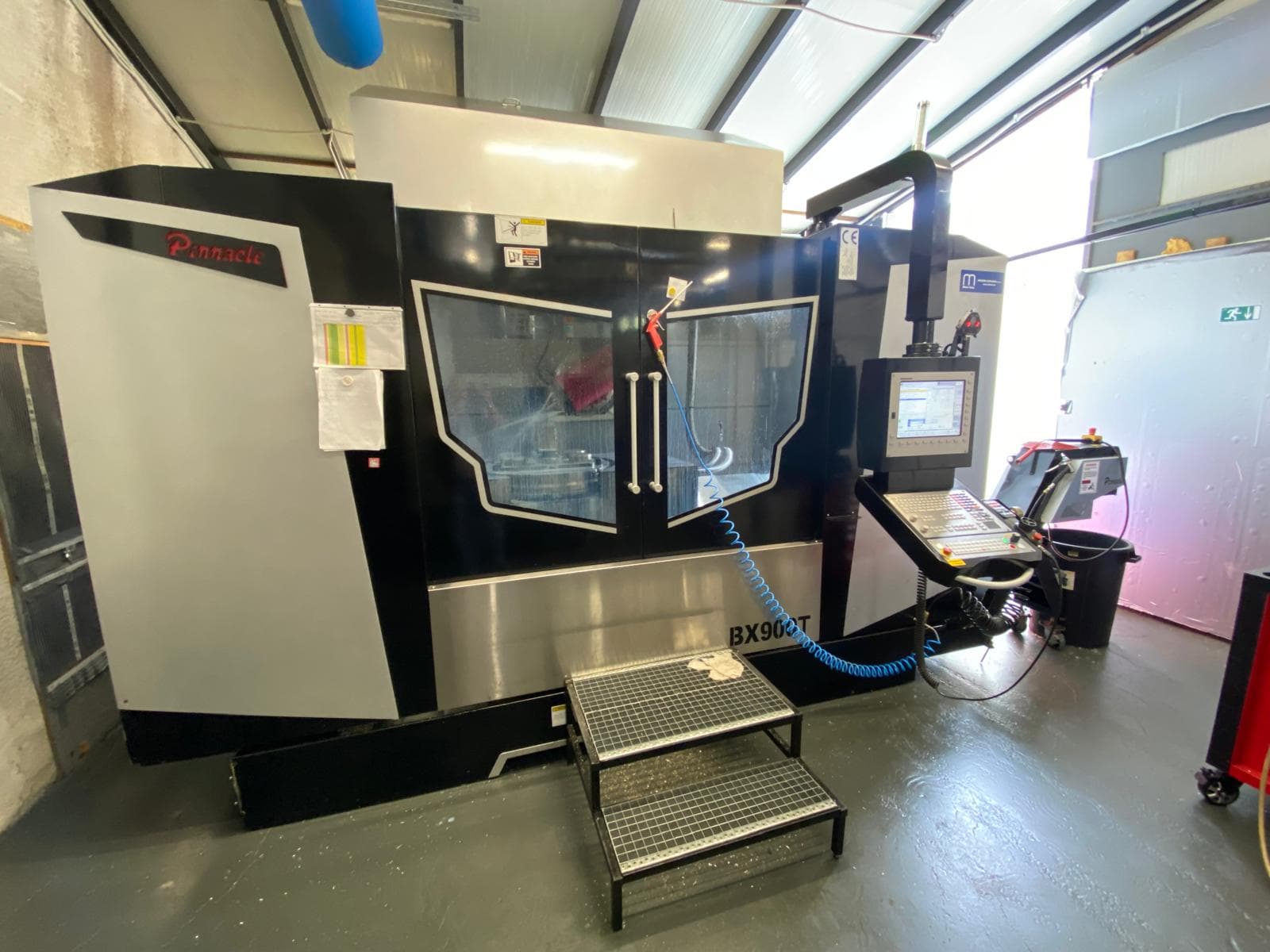

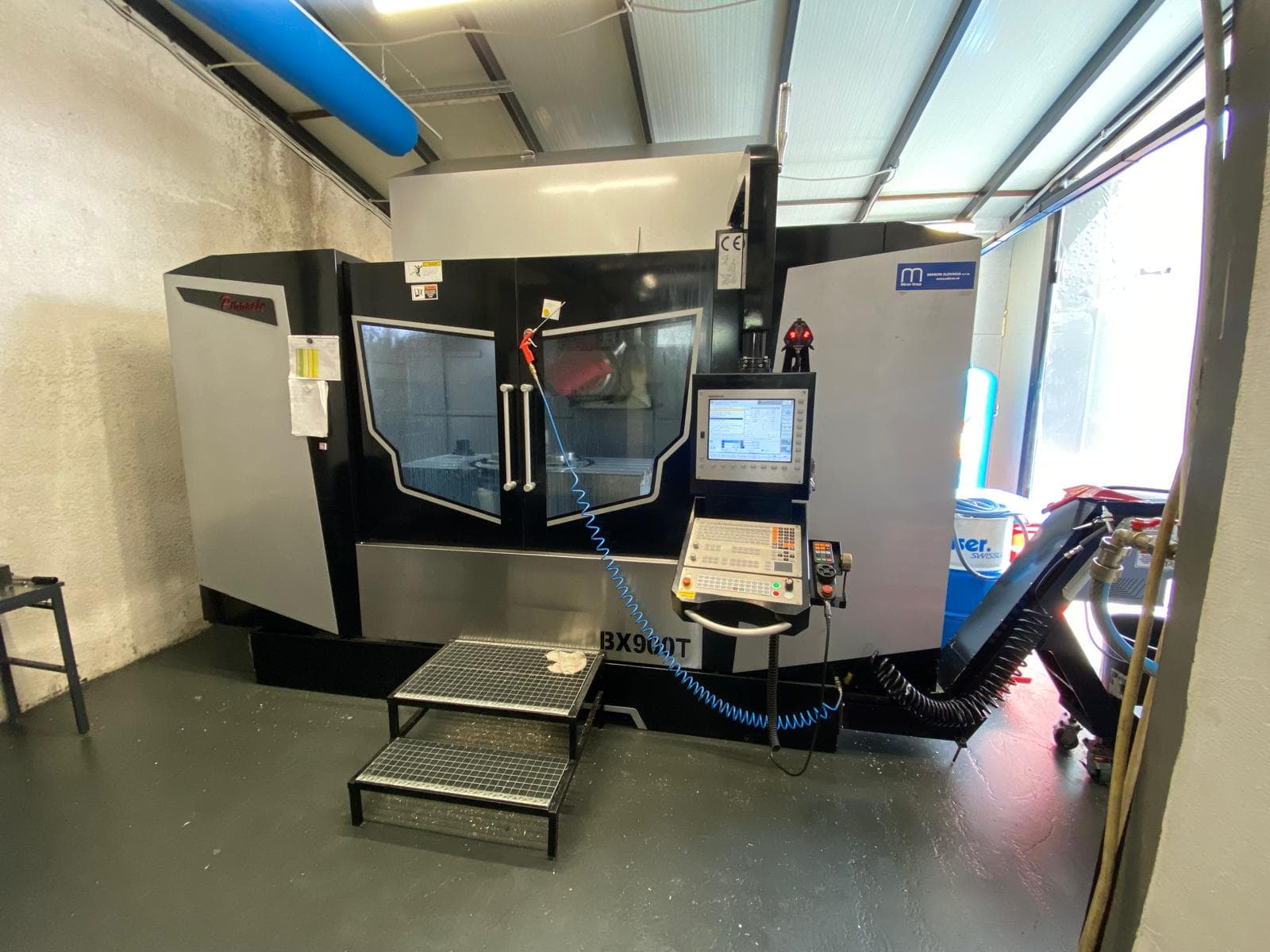

BX900-T Heidenhain TNC640

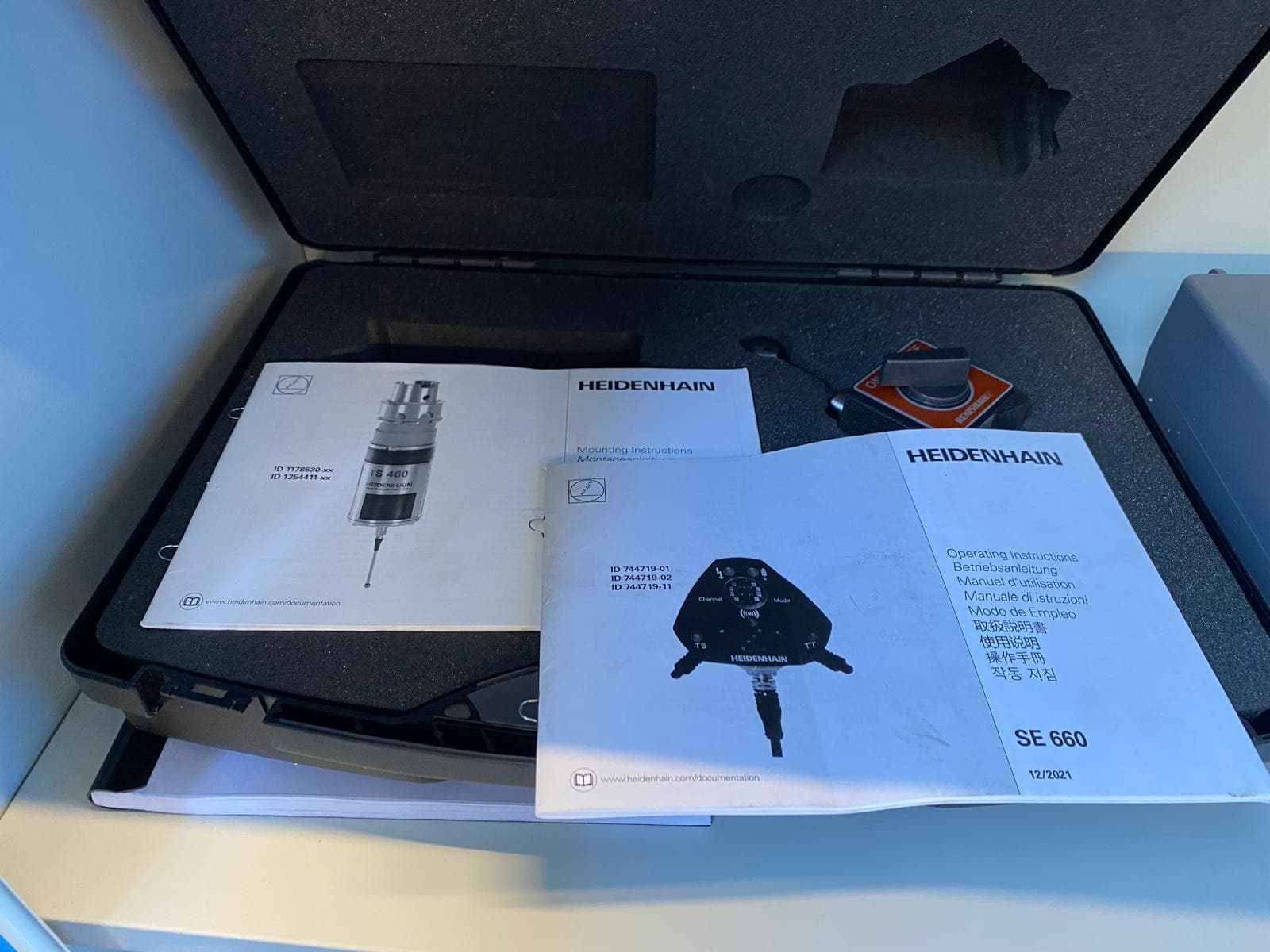

Accessories:

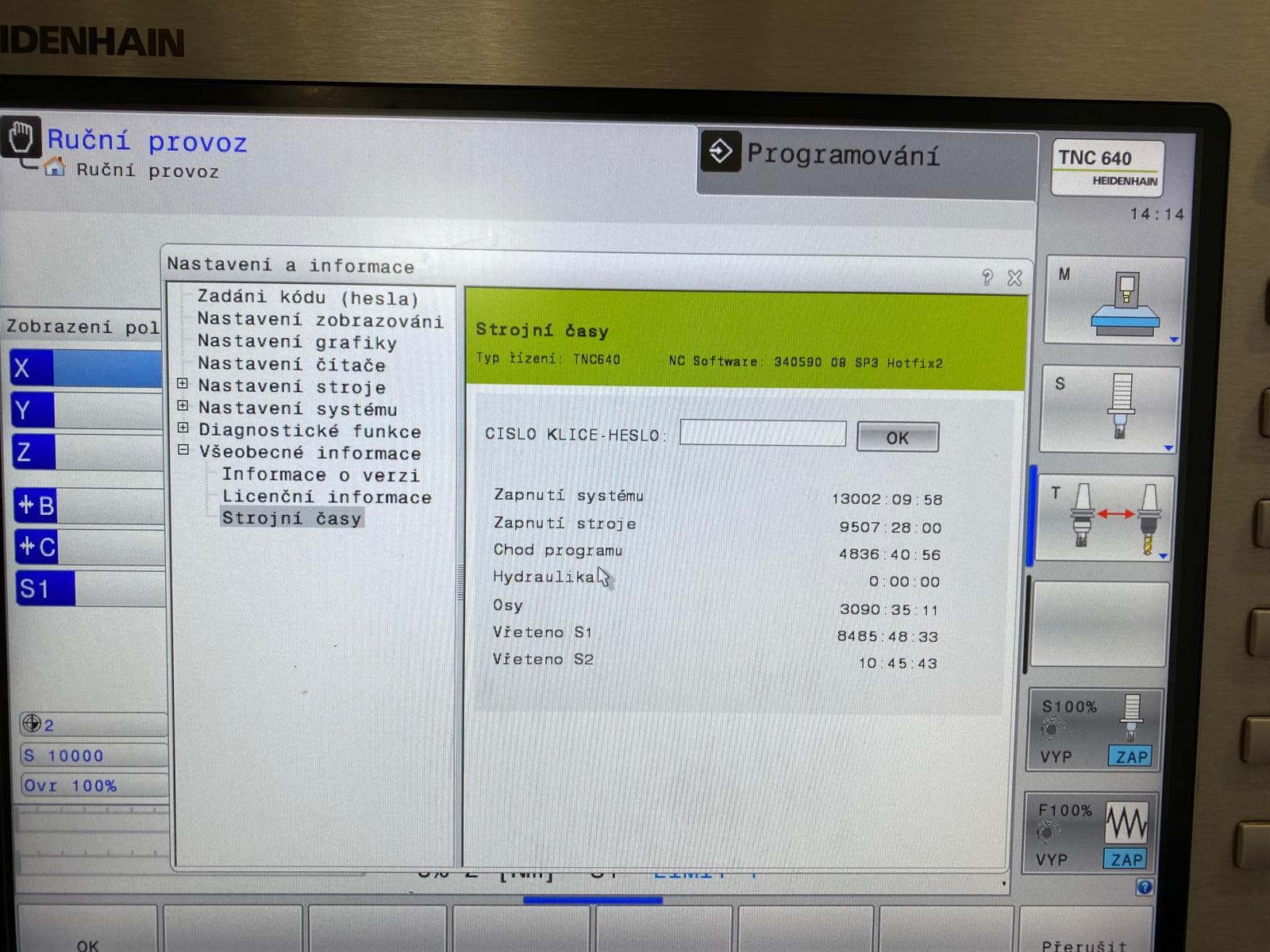

Heidenhain TNC-640 with 15" LCD, ethernet card, hard disk, DCM software, kinematics, servo drives QSY155B (2.5kW)
Spindle adjustable ±120°, HSK63T, 15,000 rpm, 19kW, 93 Nm
High-pressure cooling trought the center of the spindle 20 bar with a separate coolant tank 600 l + air blow trought the center of the spindle

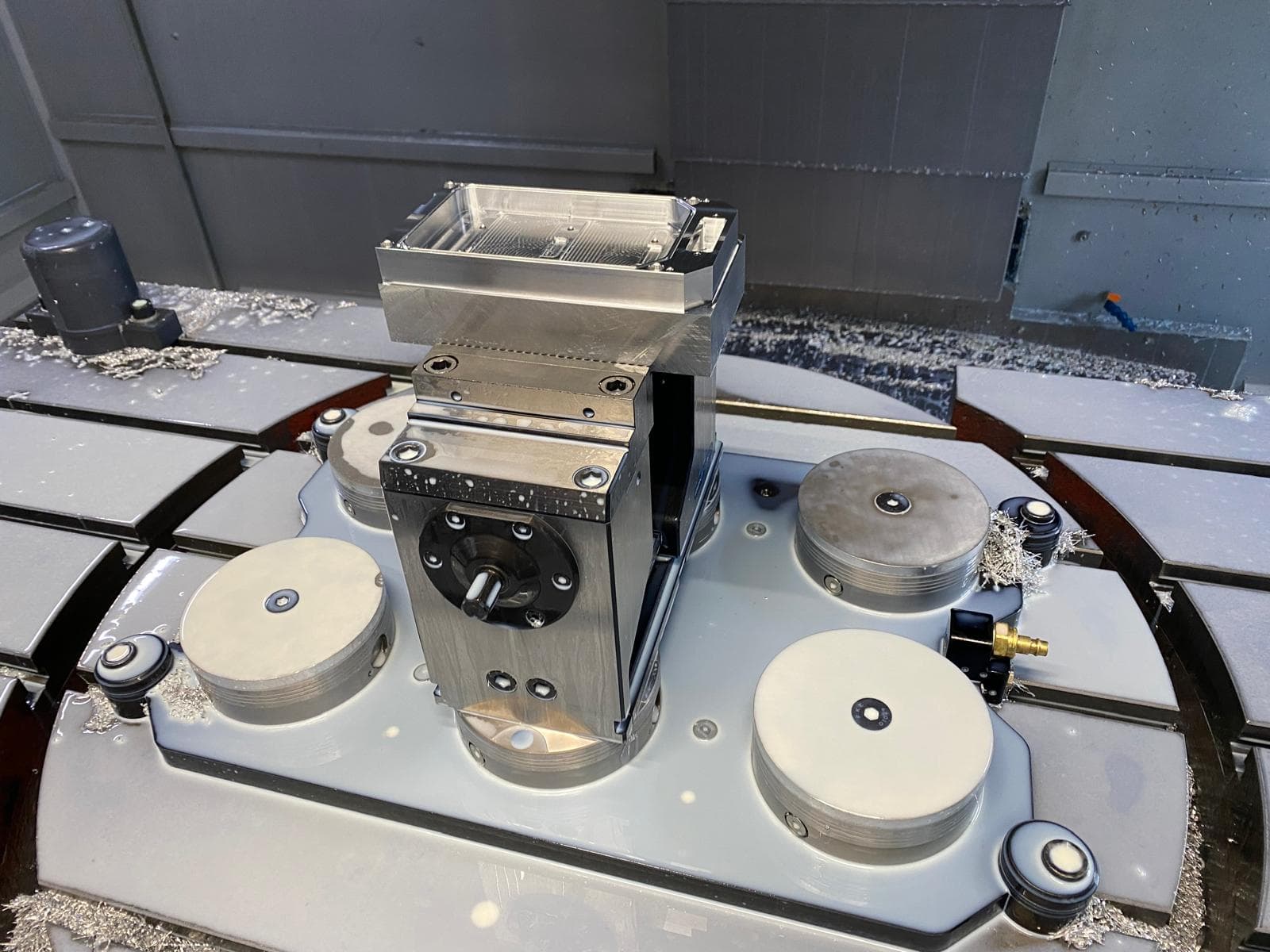

Diameter of the built-in rotary table 800mm
Turning function on the rotary table
Tool magazine with an arm for 40 tools, belt type
Revival and basic training of machine maintenance operators

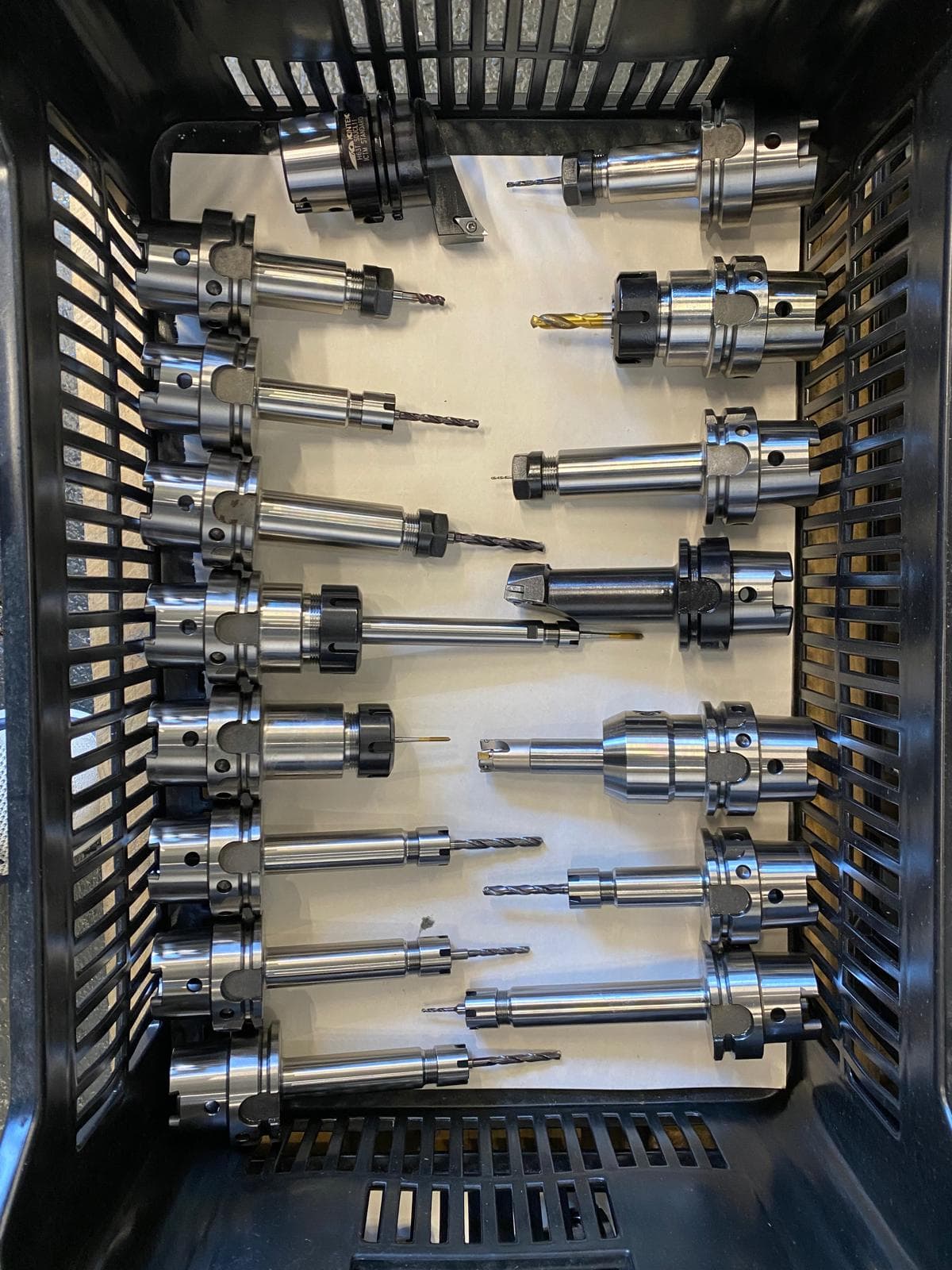

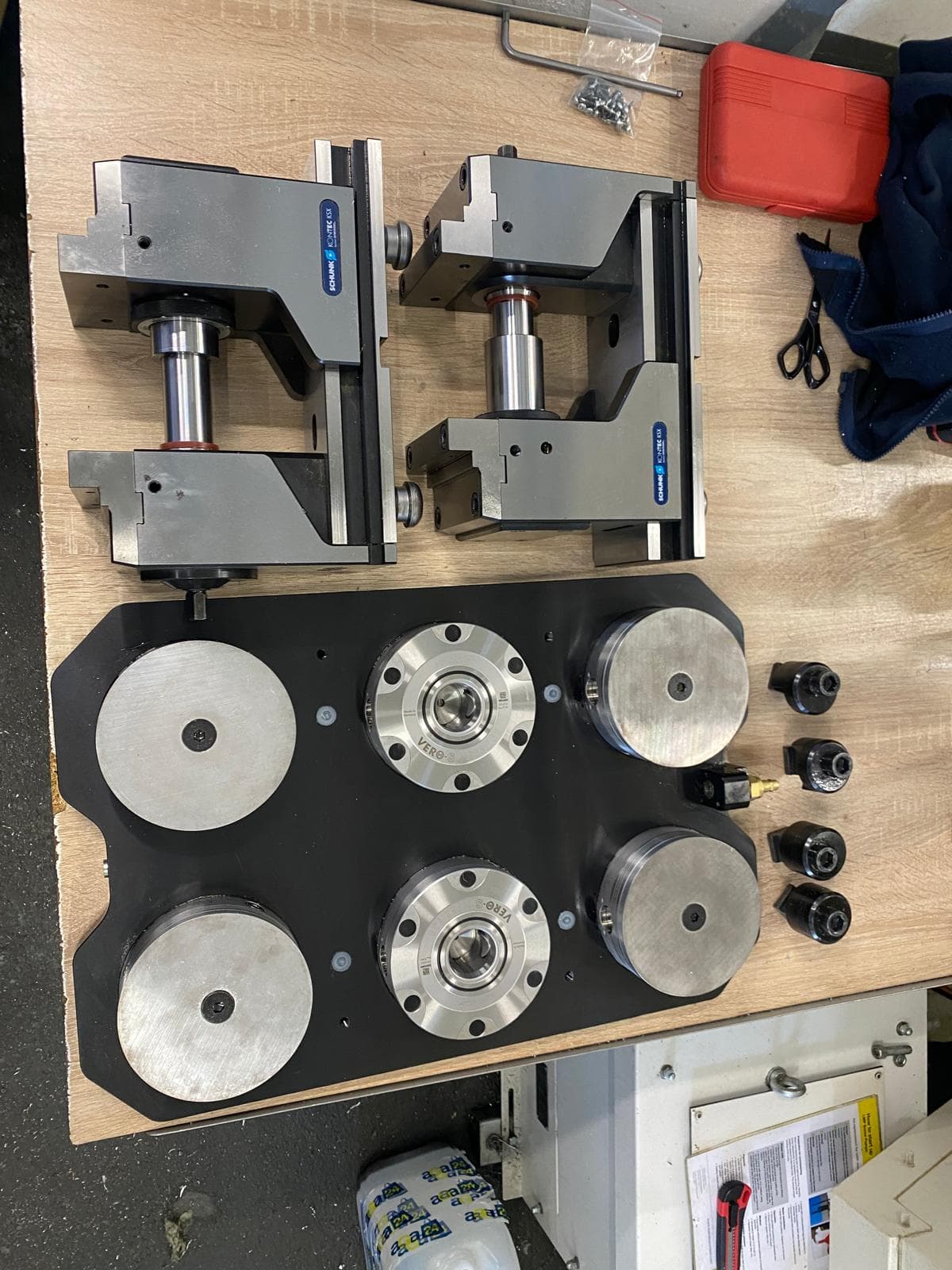

150.000,00 EUR Price of the machine without VAT, including installation at the customer's place. Including tooling and clamping system Schunk in amount of 22.000 EUR.
179 900 €
Parameters

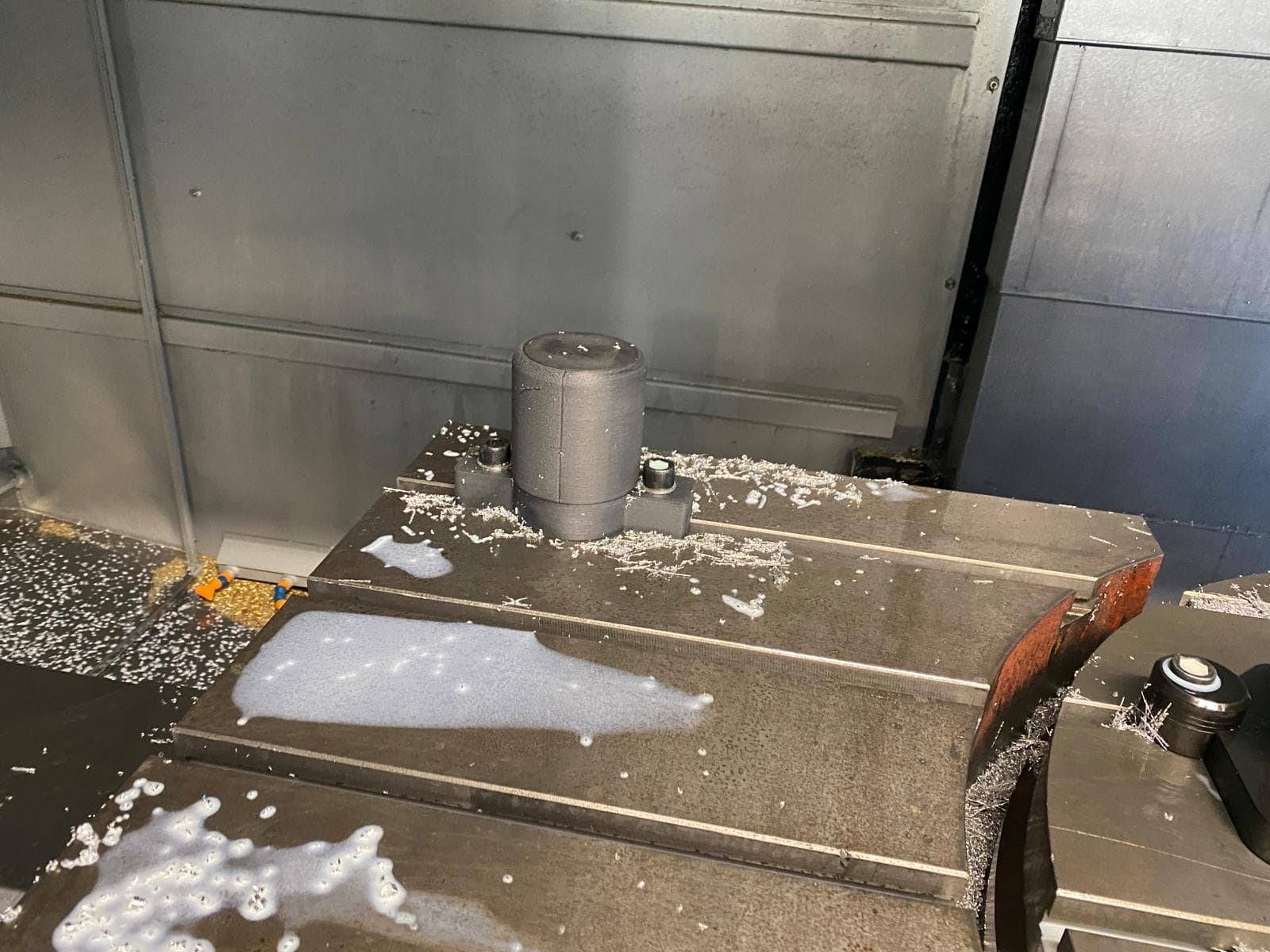

| TABLE | |
| Table Size | 1700x850mm |
| Travel ranges X | 1500mm |
| Travel ranges Y | 900mm |
| Travel ranges Z | vertikálne 1000 / horizontálne 1100mm |
| Spindle Center to Table Surface (Horizontal) | 115~1115mm |
| Spindle Nose to Table Surface (Vertical) | 255~1355mm |
| T-slot (W x D x N mm) | 18x150x5mm |
| Max. weight workpieces | 1200kg |
| ROTARY TABLE | |
| Table Diameter | 800mm |
| Rotation Speed | 50 pri frézovaní, pri sústružení 800ot/min |
| Center Bore Diameter | 60mm |
| Min. increment of C axis | 0,001° |
| Max. weight workpiece | pri frézovaní 800, pri sústružení 500kg |
| C-Axis Rated Torque | 360° |
| SPINDLE | |
| Spindle cone | HSK63Tnull |
| Torque (con./max.) | 93 / 239Nm |
| Conversion ratio (screw type) | 1:1null |
| B axis - spindle rotation | DD E-TEL motornull |
| B-Axis Rated Torque (Nm) | ± 120° |
| Spindle rotation speed | 50ot/min |
| Min. increment of B axis | 0,001° |
| Clamp Torque (Nm) | 2950/689Nm |
| Bearing Inner Diameter (mm) | 70mm |
| Spindle Speed (rpm) | 15000ot/min |
| Main Motor (con/30min kw) | 19/23kW |
| Rates | |
| Rapid Feed Rate (X/Y/Z m/min) | 20/20/16m/min. |
| Feed Rate | 10 000m/min. |
| Tool Storage | |
| Exchange system | Hydraulické obojstranné rameno |
| Tool Storage Capacity | 40ks |
| Max. Tool Diameter | 75mm |
| Max. Tool Length | 250mm |
| Max. Tool Weight | 8kg |
| MISCELLANEOUS | |
| Air Requirement | 0,6MPa |
| Power Requirement | 50kVA |
| Coolant Tank Capacity | 700l |
| Machine | |
| Machine Weight | 15000kg |
| Machine Height | 3450mm |
| Floor Space (L x W mm) | 4450x4340mm |
| Packing Size (L x W x H mm) | 4300x3260x4030mm |
| *Optional | Technical parameters are subject to change |
